Abdominal pain chart: Free template with ICD-10 codes

Key takeaways

An abdominal pain chart maps pain location to the organs beneath it, the likely diagnoses, and the ICD-10 code you record.

The four quadrants and the central zones each hold predictable organs, so location narrows the differential before any test is ordered.

Red flags such as guarding, rebound tenderness, and fever with focal pain override location and trigger immediate referral.

Code the pain location first with an R10 code, then add the underlying diagnosis once imaging or labs confirm it.

Practice management software like Pabau captures the same assessment fields every time, so escalation decisions stay documented and auditable.

An abdominal pain chart maps where a patient hurts to the organs sitting under that spot. It then links each location to the conditions that commonly cause pain there, and to the ICD-10 code you document it with.

Most practices use the four-quadrant version: right upper, left upper, right lower, and left lower. The central epigastric and periumbilical zones sit alongside them.

Location narrows the differential quickly, but it never closes it. The chart earns its place as a prompt for systematic questioning and consistent documentation.

This guide walks through the quadrants, the red flags that force escalation, and the R10 codes for each region. The template below is free to download and use in consultation.

What is an abdominal pain chart?

An abdominal pain chart is a structured clinical reference. It pairs each region of the abdomen with the organs that sit there and the conditions that commonly cause pain in that area. Some versions are quadrant diagrams, others are tables. Both do the same three jobs:

• Standardize what gets documented at every abdominal assessment.
• Prompt systematic questioning, so fewer diagnoses are missed.
• Speed up triage by showing which conditions present where.

The formal anatomical model divides the abdomen into nine regions. Two vertical midclavicular lines cross two horizontal planes, the transpyloric and the intertubercular. Day-to-day practice mostly uses the simpler four-quadrant system instead. Either way, each region corresponds to specific organs, and many conditions present with predictable patterns. Gallbladder pain usually localizes to the upper right, appendicitis to the lower right.

A documented, systematic approach also demonstrates clinical competence and reduces liability. Capturing pain location, character, associated symptoms, and examination findings on a digital form keeps that documentation consistent from one clinician to the next.

Understanding the four abdominal quadrants

The quadrant system splits the abdomen with two lines. One runs vertically down the midline, the other horizontally through the umbilicus. That leaves four quadrants, each holding predictable anatomy.

Central pain around the umbilicus or epigastrium usually comes from the small intestine, stomach, or aorta. One pattern is worth memorizing. Periumbilical pain that shifts to the right lower quadrant after a few hours points to appendicitis. Inflammation first irritates visceral pain fibers, felt at the umbilicus, before somatic fibers localize it over the appendix.

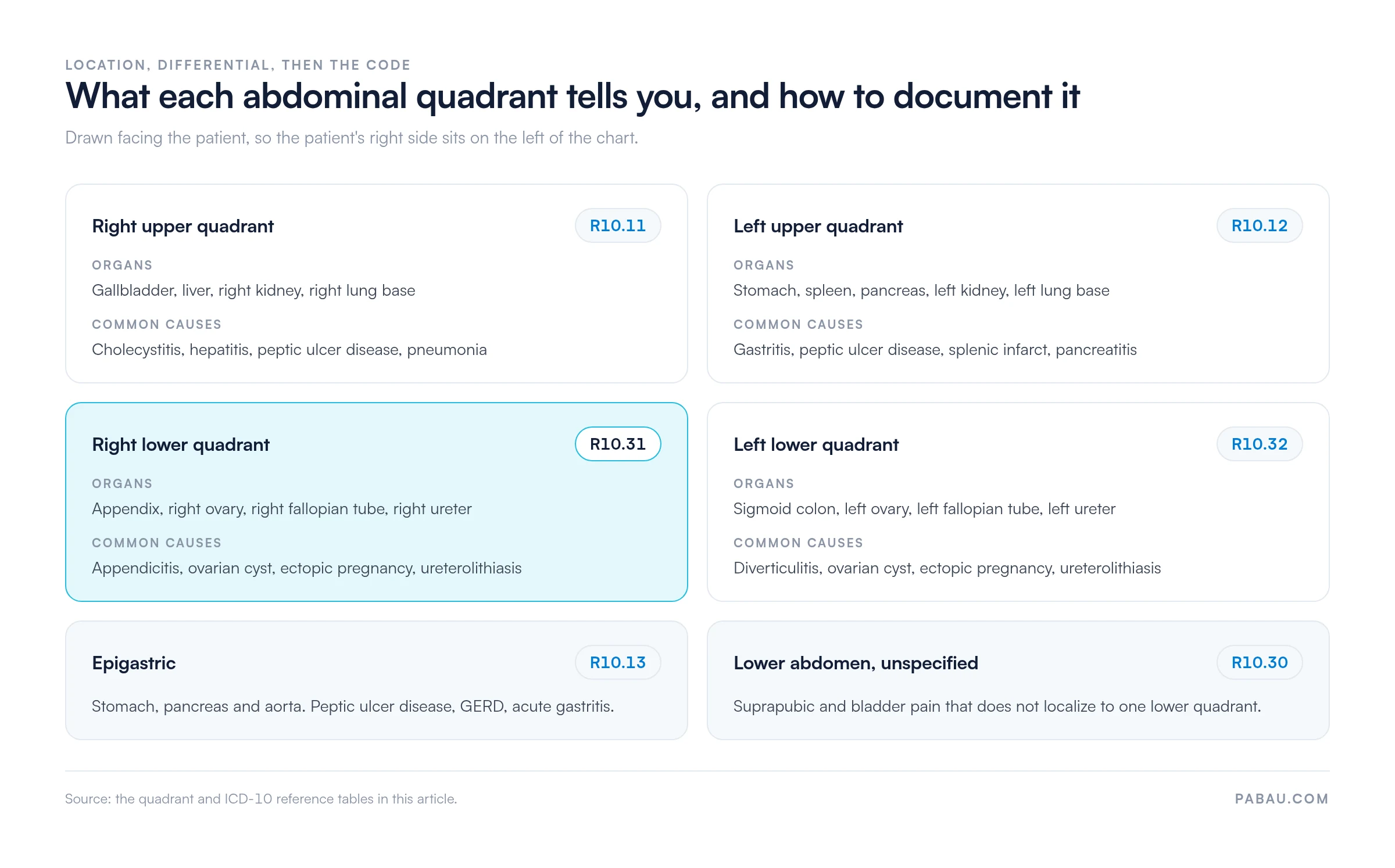

The chart below puts both halves of that reasoning in one view. It carries the organs in each region, the conditions that present there, and the matching R10 code.

How to use the chart in consultation

Five steps take a patient from a vague complaint to a documented, coded assessment.

1. Ask the patient to point to the pain rather than describe it. A finger on one spot beats a wave at the abdomen.
2. Cross-reference that spot against the quadrant chart. The organ list narrows immediately.
3. Record the pain character, radiation, timing, and associated symptoms such as nausea, fever, or changed bowel habits.
4. Examine the named quadrant. Palpate for tenderness, rebound, guarding, and masses, then write down what you found.
5. Check the findings against the red flag criteria below. If any are present, escalate before investigating further in primary care.

Writing those five fields the same way every time is what makes a later reader trust the note. Our guide to safer clinical notes covers wording that survives peer review. An abdominal exam documentation template gives you the fields already laid out.

The chart is a decision aid, not a diagnostic device. No single finding rules a diagnosis in or out. Appendicitis can present with left-sided pain, and renal colic can mimic biliary colic. What the chart does well is prompt complete documentation and flag which presentations need same-day imaging or referral.

Red flag symptoms: When to escalate or refer

Some findings demand urgent referral whatever the pain location. Recognizing them is the most safety-critical part of an abdominal assessment.

• Peritoneal signs: Guarding or rebound tenderness points to peritoneal irritation and surgical urgency, such as appendicitis, perforation, or a ruptured cyst. Refer emergently.
• Fever with localized pain: Fever plus focal tenderness suggests infection, most often appendicitis, diverticulitis, or pyelonephritis. Arrange same-day assessment or imaging.
• Hypotension or shock: Tachycardia, hypotension, or altered consciousness alongside abdominal pain suggests hemorrhage or severe sepsis. Call emergency services.
• Severe pain with a normal examination: Pain out of proportion to the findings may mean mesenteric ischemia or early perforation. Image it.
• Pregnancy with pain and bleeding: Ectopic rupture and placental abruption are both life-threatening. Any pregnant patient with abdominal pain and vaginal bleeding needs emergency evaluation.
• Age over 65: Older patients present atypically, so new abdominal pain warrants a lower threshold for investigation.

Structured patient records can carry the red flag fields and raise an alert when one is ticked. That reduces the chance of a missed urgent presentation. Documenting why a case was referred, or why it was not, protects both clinician and patient.

Abdominal pain in females: Key anatomical and clinical differences

The female lower abdomen holds reproductive organs that can generate pain mimicking appendicitis, diverticulitis, or renal colic. A 25-year-old woman with right lower quadrant pain might have appendicitis.

She might equally have an ovarian cyst, an ectopic pregnancy, pelvic inflammatory disease, or mittelschmerz. Always ask about menstrual history, last menstrual period, the possibility of pregnancy, and gynecological symptoms.

A positive pregnancy test changes the whole differential, because ectopic pregnancy moves to the top of it. Your chart should flag female-specific diagnoses by quadrant so gynecological causes are not overlooked.

A pelvic examination is often warranted in females with lower abdominal pain, to check for cervical motion tenderness or adnexal masses.

ICD-10 codes for abdominal pain: Clinical reference

Accurate documentation feeds directly into coding. The R10 series organizes codes by pain location and character, which mirrors the quadrant system you just used.

Code the location of the pain first with an R10 code. Then add a code for the underlying cause once it is identified, such as K80.20 for gallstones without cholecystitis. That two-code structure ties symptom documentation to diagnostic reasoning and supports billing accuracy.

Who the chart helps most

The chart earns its keep anywhere abdominal presentations are triaged. Primary care physicians and nurse practitioners reach for it before referral.

Emergency clinicians use it to stream acute presentations, and gastroenterologists and colorectal surgeons use it when reviewing referrals. It doubles as a teaching tool for medical students and residents learning differential diagnosis.

The documentation side matters most in busy general practice, where the same complaint arrives several times a week. Software for primary care that stores the assessment template alongside the patient record keeps that reasoning in one place.

Benefits of standardizing pain assessment

Standardized use of the chart pays off clinically and operationally. It reduces diagnostic error by prompting systematic questioning. That limits anchoring bias, the pull of a first impression that stops you looking further.

Operationally, it turns a vague presenting complaint into coded, searchable documentation. Hand-off notes to a specialist become easier to read, and the referral reason is already written down. Documented adherence to a systematic framework also supports peer review and accreditation.

Workflow automation closes the loop. When a red flag field is ticked, the record can raise a task instead of relying on someone remembering to chase it.

How Pabau supports abdominal pain assessment and documentation

Most practices assess abdominal pain well and record it inconsistently. One clinician writes a paragraph, the next writes three words, and the referral letter has to be rebuilt from scratch.

Practice management software like Pabau replaces that free text with a templated form. Pain location, character, severity, associated symptoms, and examination findings each get their own field, so the chart’s structure lives in the record. Location choices come from a dropdown, which cuts transcription error.

Red flags recorded in the form can trigger an alert and mark the case for same-day escalation. The result is an auditable assessment that another clinician can pick up, which matters most when the patient is referred onward.

See how Pabau structures clinical assessment

Templated assessment forms capture pain location, red flags, and examination findings in set fields, so referrals leave your practice complete.

Book a demo

Conclusion

Use the chart as a prompt, not an answer. Its value is that it makes you ask the same questions in the same order. The note you write then ends up complete enough for the next person to act on.

One trade-off is worth remembering. Location is a filter, and a filter lets some cases through. Pair the chart with the red flag criteria and a low threshold for escalation, and the misses get rarer.

If your practice is tightening documentation more broadly, our HIPAA compliance checklist covers the storage and access side of the same records. Book a demo to see how Pabau turns the abdominal pain chart into a templated assessment your whole team fills in the same way.
