HCPCS code L1020 – Kyphosis pad addition billing guide

Key takeaways

HCPCS code L1020 bills a kyphosis pad added to a cervical-thoracic-lumbar-sacral orthosis (CTLSO), the Milwaukee-type scoliosis brace.

It is a spinal orthosis addition for kyphosis and scoliosis bracing, with no link to ankle-foot orthoses or foot drop.

L1020 is denied as not separately payable unless the base code L1000 is on the same claim.

A floating kyphosis pad is L1025, so the fitting note has to say which type of pad was fitted.

No LCD covers the scoliosis range, so the KX modifier does not apply, and a midline brace takes no RT or LT modifier.

Practice management software like Pabau keeps the order, the fitting note and the delivery record on one patient file.

What is HCPCS code L1020?

HCPCS code L1020 bills a kyphosis pad added to a cervical-thoracic-lumbar-sacral orthosis (CTLSO) or scoliosis orthosis. The official descriptor reads Addition to CTLSO or scoliosis orthosis, kyphosis pad. It describes one component of a spinal brace, not a standalone device.

The code sits in the L1000 to L1120 range, the scoliosis orthotic devices section of the L-series. The Centers for Medicare and Medicaid Services (CMS) maintains the descriptor through the annual HCPCS update. Orthotists and DMEPOS suppliers bill it to the DME Medicare Administrative Contractor (MAC).

A kyphosis pad is a posterior pad mounted on the brace near the apex of a kyphotic curve. It pushes forward against the curve, while the neck ring and pelvic section of the brace hold the counterforce.

L1020 code details at a glance

The descriptor decides what can be billed alongside L1020. The table sets out the details a DMEPOS supplier needs before submitting the line.

Clinical context: when a kyphosis pad is added

A kyphosis pad is prescribed when the brace has to control a sagittal curve, either alone or alongside a lateral curve. It concentrates pressure at the kyphotic apex, which the plain CTLSO frame cannot do on its own.

Situations where L1020 is typically supplied with an L1000 brace include:

• Scheuermann kyphosis in a patient who is still growing
• Kyphoscoliosis, where a thoracic curve combines lateral and sagittal deformity
• Secondary structural kyphosis where the treating practitioner prescribes bracing
• Kyphotic progression on serial standing lateral radiographs despite observation

The prescription usually follows a sagittal Cobb angle and a skeletal maturity assessment. Both belong in the medical record, because they explain why the brace needs a posterior pad.

L1020 has no connection to the foot or ankle. Ankle-foot orthoses sit in the L1900 to L1990 range. For example, L1990 describes a custom-fabricated double-upright ankle-foot orthosis with a solid stirrup and calf band.

L1020 vs L1010, L1025 and L1030: picking the right addition code

The additions around L1020 describe different components on the same brace. These four are the ones most often swapped on a claim.

Read the fitting note for the word floating before choosing the code. A floating pad is L1025 alone, and billing L1020 and L1025 for the same pad duplicates the component.

Base code rules for billing L1020

L1020 is only payable with a base brace that accepts additions. The DME MACs and the Pricing, Data Analysis and Coding (PDAC) contractor recognize seven scoliosis base codes, and only two of them take additions.

• L1000, the CTLSO (Milwaukee), accepts the L1010 to L1120 additions, including L1020
• L1200, the TLSO, accepts its own additions from L1210 to L1290, so L1020 does not attach to it
• L1005, L1006, L1007, L1300 and L1310 are all-inclusive, so an addition billed with any of them is unbundling

Billed without L1000 on the same claim, L1020 is denied as not separately payable. Our guide to HCPCS code L1000 covers the base brace and its allowance in full.

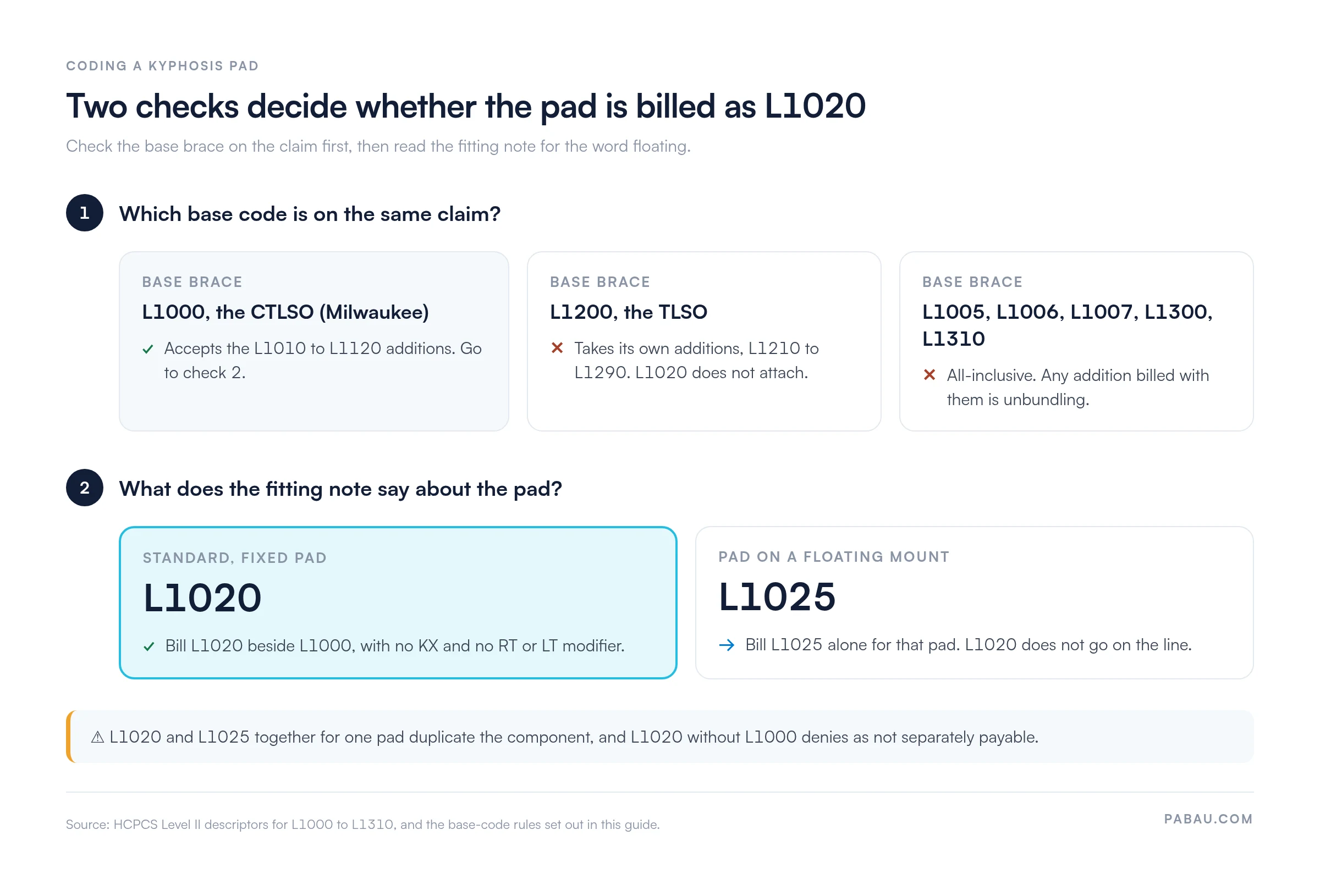

Once the base code is confirmed, the fitting note settles whether the pad is L1020 or L1025, as the decision below shows.

Medicare coverage for L1020

L1020 is covered under the brace benefit in section 1861(s)(9) of the Social Security Act. The DME MAC processes the claim, and the DMEPOS fee schedule sets the allowance.

No Local Coverage Determination governs L1020. The spinal orthosis LCD, LCD L33790, lists codes L0450 to L0651 only, so it does not reach the scoliosis range. The ankle-foot orthosis LCD, L33686, does not apply either.

Without an LCD, the DME MAC reviews each claim against the general reasonable and necessary standard. So the claim file needs all of the following:

• Qualifying diagnosis: a documented kyphosis or scoliosis, usually from the M40, M41 or M42.0 ranges
• Clinical justification: notes recording the curve measurement, the growth status and why the brace needs a kyphosis pad
• Base code on the claim: L1000 billed for the same brace and date of service
• Standard written order: a signed, dated order from the treating practitioner, on file before the claim is submitted
• Proof of delivery: a signed delivery record naming the orthosis and its additions
• Supplier enrollment: an active DMEPOS supplier number and accreditation covering orthotics

L1020 reimbursement and the DMEPOS fee schedule

Medicare pays L1020 from the DMEPOS fee schedule, not the physician fee schedule. Allowances vary by state and CMS republishes them each January, so check the CMS DMEPOS fee schedule files before you submit.

Medicare pays 80% of the allowed amount once the Part B deductible is met. The patient or a secondary payer covers the 20% coinsurance. The L1020 allowance is paid on top of the L1000 allowance, never in place of it.

The descriptor carries no each qualifier, unlike the upright cover code L1120. Confirm unit reporting with your DME MAC before billing more than one unit of L1020 on a line.

Modifiers for an L1020 claim

Modifier habits from other orthosis claims are where L1020 lines go wrong. A clean L1020 line uses fewer modifiers than a TLSO, LSO or ankle-foot orthosis claim.

Check for a stray KX first. Appended out of habit, it attests to criteria that do not exist for this code, and that attestation is hard to defend on audit.

ICD-10 diagnosis codes that support L1020

The diagnosis on the claim has to match the sagittal deformity the record describes. Most L1020 claims draw on the M40 kyphosis range or the M42.0 range for Scheuermann kyphosis.

Code to the site the record documents. A category header such as M42.0 or M40.29 is not billable, so the site character has to be on the claim line.

Documentation requirements for L1020

No LCD sets out a checklist, so the medical record carries the whole case for payment. Assemble the file before the brace ships rather than after a denial.

The standard written order

A standard written order (SWO) has to be on file before the claim is submitted. Certificates of Medical Necessity and DME Information Forms were discontinued on January 1, 2023, so the order and the chart carry the burden. The SWO includes:

• The patient name and an identifier such as the date of birth
• The order date
• A description of the item, naming the CTLSO and the kyphosis pad addition or their HCPCS codes
• The quantity, where more than one item is ordered
• The name and signature of the treating practitioner

CMS also publishes a master list of DMEPOS items that may need a face-to-face encounter, a written order before delivery, or prior authorization. Check the current list before each new fitting cycle, because CMS revises it.

Medical record elements that support medical necessity

The order alone does not prove medical necessity. The treating practitioner’s record has to support it independently, and that record is what a MAC reviewer asks for.

• A clinical note establishing the kyphosis or kyphoscoliosis diagnosis and the spinal region involved
• A sagittal Cobb angle from a standing lateral radiograph, with the date of the study
• Skeletal maturity or growth remaining, since bracing is prescribed while growth continues
• The reason the brace needs a kyphosis pad, and whether the pad is fixed or floating
• Fitting notes that name the pad and where it sits on the brace
• A signed proof of delivery that lists the L1000 brace and its additions

Common claim denial reasons for L1020

Most L1020 denials trace back to how the claim was built rather than to the pad itself. Catching them before the claim reaches the MAC costs far less than an appeal.

Medicare redeterminations are filed with the MAC within 120 days of the initial determination. A reconsideration follows with the Qualified Independent Contractor within 180 days. Send the order, the clinical notes, the imaging report and the fitting record with each level.

How Pabau supports scoliosis brace addition claims

An L1020 claim fails when its pieces sit in different places. The order arrives by email, the Cobb angle sits in an imaging report, and the fitting note stays with the orthotist. Nobody sees that the file is short until the remittance advice arrives.

Pabau keeps those records on one patient file. The order, the fitting note, the scan record and the signed delivery confirmation attach to the same record. The base code and its additions come from one encounter, so they are submitted together.

Pabau’s claims management software then tracks each submitted line and shows what it is waiting on. Your team sees a missing signature before the brace ships, so the claim goes out complete rather than coming back as a denial.

Keep every scoliosis brace claim complete

Pabau holds the order, the fitting note and the proof of delivery on one patient file. L1000 and its L1020 addition then go out on the same claim.

Book a demo

Conclusion

HCPCS code L1020 is a small line on a scoliosis brace claim, but it fails for predictable reasons. It depends on L1000 being on the same claim, it has a floating twin in L1025, and no LCD defines its documentation.

Treat the kyphosis pad as part of the brace order, not an afterthought. Name it in the order, describe it in the fitting note and bill it beside L1000 without KX. Our hub covers every HCPCS code family a DMEPOS supplier bills. To see how Pabau keeps that file together, book a demo.
