ECG 12-lead test: Placement, interpretation, and normal values

Key takeaways

A 12-lead ECG uses just 10 electrodes to produce 12 views of the heart’s electrical activity.

Placement accuracy decides the result, and misplaced precordial leads are the most common source of recording errors.

Normal values include a heart rate of 60-100 bpm, a PR interval of 120-200 ms, and a QRS duration under 120 ms.

Localizing a finding means reading the leads in groups, because the septal, anterior, lateral, and inferior walls each have their own set.

Practice management software like Pabau keeps ECG orders, interpretations, and follow-up actions on one patient record.

A patient with chest pain walks into your practice. Within minutes your team has to work out whether this is a musculoskeletal complaint or a STEMI. The ECG 12-lead test answers that question, and it does so in under ten minutes. According to the American Heart Association, it is still the first-line cardiac diagnostic test in use worldwide.

An ECG 12-lead test records the heart’s electrical activity from 12 angles at once. It uses 10 electrodes placed on the skin, four on the limbs and six on the chest, to produce those 12 views. Each view corresponds to a region of the heart muscle. Together they give a spatial map of conduction that no other resting test matches.

This guide covers electrode placement, including female and posterior leads. It also covers systematic interpretation, normal reference values, and how private practices build ECG workflows that cut administrative work.

ECG vs EKG: The same test, different spelling

ECG stands for electrocardiogram, the English abbreviation. EKG comes from the German Elektrokardiogramm, adopted early in cardiology’s history when German-speaking clinicians led the field. Both terms refer to identical technology and an identical procedure. In the UK and most of Europe, ECG is standard. In the US, you’ll see EKG used interchangeably, particularly in emergency medicine. This guide uses ECG throughout, and every point in it applies to an EKG.

Why is a 12-lead ECG performed?

A 12-lead ECG is performed to check the heart’s rate, rhythm, and conduction whenever symptoms or a planned procedure put cardiac risk in question. According to MedlinePlus, the most common indications include:

• Chest pain or discomfort – to rule out or confirm myocardial ischemia or infarction
• Palpitations or suspected arrhythmia – to assess heart rate and rhythm and identify irregular conduction patterns
• Shortness of breath or syncope – to investigate cardiac causes including heart block or ventricular dysfunction
• Pre-operative assessment – a baseline ECG is routinely required before surgery in patients over 40 or with cardiac risk factors
• Monitoring known cardiac conditions – to track changes in patients with coronary artery disease, hypertrophy, or those on cardioactive medications
• Athlete cardiac screening – the ACC/AHA and the European Society of Cardiology differ on population-level screening, but individual athlete screening is widely practiced

The test is painless and non-invasive. There is no radiation exposure, and the procedure carries no direct risk to the patient. Say that to the patient before you start. An anxious patient tenses up, and tense muscles spoil the trace.

How to place the 12 electrodes: Step-by-step placement guide

Placement accuracy is where most recording errors originate. A misplaced V1 or V2 electrode can produce a false right bundle branch block pattern. Swapped limb leads produce mirror-image artifacts. Prepare the skin first, so that every site is clean, dry, and shaved where necessary. Cold or wet skin increases impedance and degrades signal quality.

Limb lead placement (leads I, II, III, aVR, aVL, aVF)

Four electrodes produce the six limb leads. Place them on the fleshy parts of the limbs, avoiding bony prominences. Proximal placement (upper arms, thighs) is an accepted clinical variant when distal sites are unavailable, but it can affect waveform amplitude.

Precordial (chest) lead placement (V1-V6)

The six precordial electrodes are placed across the chest wall using intercostal spaces and sternal landmarks as anchors. V4 is the keystone: place it at the 5th intercostal space, midclavicular line, then work outward. All other chest placements reference off V4’s position.

ECG lead placement in female patients

Breast tissue displaces the electrode from the chest wall. That increases skin-to-electrode distance and attenuates signal amplitude. The clinical consensus is to place V3 through V6 beneath the breast rather than on top of it. That keeps skin contact at the correct anatomical level. Electrodes placed on top of the breast sit above the intended intercostal space and alter precordial waveform morphology.

Explain the placement approach to the patient before you begin. Use a same-gender clinician or a chaperone where patient preference or practice policy requires it. Document the approach in the patient record, so future recordings stay consistent and comparable. Practice management software like Pabau holds that note with the consent form, so the next clinician repeats the same placement.

Posterior lead placement (V7-V9)

Posterior leads sit outside the standard 12-lead protocol, but they earn their place when posterior myocardial infarction is suspected. In a posterior MI the standard leads may show only ST depression in V1-V3, which reads like subendocardial ischemia. Adding V7, V8, and V9 images the posterior wall directly.

ST elevation of 0.5 mm or more in V7-V9 meets the threshold for posterior STEMI, according to cardiology literature. These are extended leads, and ordering them takes clinical judgment. Read them alongside troponin values and the clinical presentation, never in isolation.

How to interpret a 12-lead ECG: A systematic approach

Interpretation without a systematic framework invites missed findings. Work through the same sequence every time, whatever you notice first. The six-step system below follows the approach used in ACC/AHA clinical education, set out in the AHA/ACCF/HRS ECG standardization series.

1. Rate – count the number of large squares between two R waves, divide into 300. Normal range: 60-100 bpm.
2. Rhythm – is the rhythm regular? Are there P waves before every QRS? Is the P wave morphology consistent?
3. Axis – check leads I and aVF. Normal axis: Both positive. Left axis deviation if I is positive and aVF is negative. Right axis if I is negative and aVF is positive.
4. Intervals – measure PR interval, QRS duration, and corrected QT interval. Compare against reference values.
5. Waveform morphology – assess P wave shape, QRS configuration (R wave progression across V1-V6), and T wave polarity.
6. ST changes – look for ST elevation or depression, T-wave inversion, and Q waves. Localize any change to the relevant cardiac territory using the lead groupings.

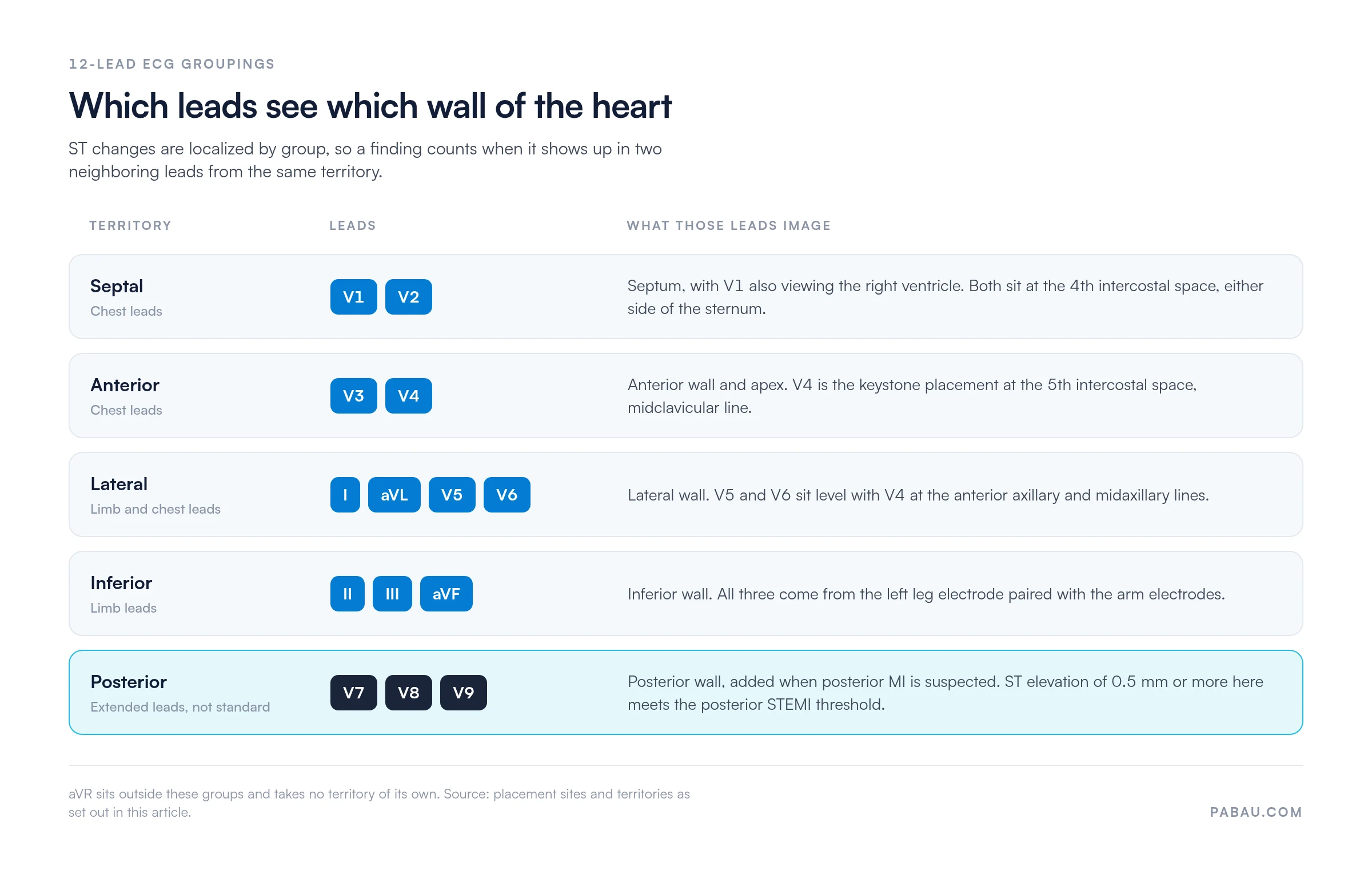

Step six only works if the groupings are second nature. Leads II, III, and aVF look at the inferior wall, and leads I, aVL, V5, and V6 cover the lateral wall. V3 and V4 view the anterior wall and apex, while V1 and V2 view the septum. A finding in a single lead does not name a territory, which is why ST changes are judged in contiguous pairs.

Good notes capture all six steps in a structured format. Pabau’s electronic patient records let clinicians attach the interpretation straight to the patient’s file. Entries are timestamped and results can be flagged for physician review. That consistency is what makes serial ECGs safe to compare later.

Reading the waveforms: P wave, QRS complex, and T wave

Each waveform component reflects a phase of the cardiac cycle. The P wave represents atrial depolarization. The QRS complex reflects ventricular depolarization, usually the most prominent deflection on the trace. The T wave represents ventricular repolarization. A fourth component, the U wave, shows up less often. A prominent U wave can point to hypokalemia, which means checking the potassium value against a basic metabolic panel chart.

Normal duration thresholds matter for diagnosis. QRS duration above 120 ms suggests bundle branch block or ventricular conduction delay. A prolonged QT interval carries arrhythmia risk, particularly when it is drug-induced. Recording both values at every visit is what makes a slow drift visible on a patient taking cardioactive medication.

Normal 12-lead ECG values: Reference chart

These values reflect consensus ranges from the Heart Rhythm Alliance STARS guidelines and mainstream cardiology references. Individual patient context always applies. A trained clinician’s judgment takes precedence over a single parameter falling outside these ranges.

Common abnormal findings on a 12-lead ECG

An abnormal result does not automatically mean an emergency, though a few patterns need an immediate response. Context decides urgency. Give worried patients the honest version. An abnormal ECG needs clinical review, and most findings are not immediately life-threatening.

• ST elevation – in two or more anatomically contiguous leads, this may suggest STEMI. Immediate cardiology review is required. This finding should never be managed without physician input.
• ST depression and T-wave inversion – may indicate subendocardial or demand ischemia. Review it alongside the clinical presentation and the troponin result.
• Atrial fibrillation – absent P waves, irregularly irregular rhythm. Requires rhythm management plan and stroke risk assessment.
• Bundle branch block – right (RBBB) or left (LBBB). LBBB in a new presentation with chest pain requires urgent evaluation. RBBB in an asymptomatic patient may be incidental.
• Q waves – pathological Q waves (greater than 40 ms wide or greater than 25% of the following R wave) suggest prior infarction.
• Ventricular hypertrophy – increased QRS amplitude suggests LVH or RVH; criteria vary by formula used (Sokolow-Lyon, Cornell).

Document every finding clearly, including the clinical context and any immediate action taken. Structured notes protect both patient and clinician if a finding is reviewed or queried later.

What happens during an ECG 12-lead test: Patient walkthrough

Most patients arrive at the test with little preparation. A brief walkthrough before you begin reduces the movement artifact that anxiety and physical tension cause. The procedure takes 5-10 minutes from setup to result.

1. Patient preparation – patient lies supine on the examination table. Clothing is adjusted to expose the chest, wrists, and ankles. Explain each step briefly before touching.
2. Skin preparation – clean electrode sites with an alcohol wipe and allow to dry. Remove any body hair with a dry razor if needed. Abrade the skin lightly with a dry gauze if baseline impedance is high.
3. Electrode application – apply limb electrodes first, then precordial electrodes V1 through V6 in order. Check lead connections are secure before acquisition.
4. Acquisition – instruct the patient to breathe normally and remain still. Record for 10 seconds minimum. Review the trace on screen before removing electrodes.
5. Post-test – remove electrodes, assist the patient in covering up, and communicate next steps. Inform them when and how they will receive results.

Practices running automated clinical workflows can send a preparation message before the appointment. It asks the patient to wear loose clothing and to skip body lotion on the chest and limbs that day. Both make a clean first trace more likely.

Collecting consent and preparation answers before arrival means the appointment itself can stay on the patient.

How Pabau streamlines ECG documentation and follow-up

The ECG 12-lead test is fast. The administrative work around it does not have to be slow. Private practices and GP practices running ECGs hit the same friction. Request forms are printed, interpretations are handwritten and clipped to the trace, and results go out by phone or letter.

Digitizing that workflow changes the economics. Practice management software like Pabau ties test ordering, result documentation, and patient communication together, which removes three manual handoffs. The interpretation is typed straight into the patient record at the point of care.

Follow-up appointments are booked before the patient leaves. Abnormal results are flagged in the system and assigned to a reviewing clinician. The printed trace still needs a home in the record. Stored with Pabau’s organized clinical photo records, a scanned trace sits beside its interpretation instead of in a paper folder. An audit years later can still find both.

Practices running high ECG volumes, such as occupational health or sports medicine services, get more from clinical measurement tracking. It trends key parameters across serial recordings. Take a QTc interval that has crept from 430 ms to 455 ms over two years on the same medication. Paper files rarely surface that.

Keep ECG orders, results, and follow-ups in one record

Pabau helps private practices and GP practices document diagnostic test orders, attach results to the patient file, and automate pre-appointment preparation. No lost paperwork, and no chasing results.

Book a demo

Conclusion

A 12-lead ECG is only as good as the ten minutes of preparation and documentation around it. A trace recorded from a misplaced V2 costs more time than it saved. So does one filed without its interpretation, because the next clinician has to read it cold.

Fix both ends of the process and the middle takes care of itself. Standardize placement, run the same six-step read every time, and store the result where the next clinician will look for it. Book a demo to see how Pabau keeps ECG orders, interpretations, and follow-ups on one patient record.
