HCPCS Code K0854: Power wheelchair, group 3 extra heavy duty

HCPCS code K0854 covers a power wheelchair, group 3 extra heavy duty, with a sling or solid seat and back. The rated patient weight capacity is 601 pounds or more, which makes it the heaviest sling-seat tier in the group 3 series.

A chair rated at 600 pounds or less belongs on a different code. That single threshold is where most K0854 errors begin. The tier directly below is K0852, which runs from 451 to 600 pounds.

Bill the wrong tier and the claim is denied on equipment classification rather than medical necessity. What follows is the official descriptor, how Medicare pays the code, and the coverage rules under LCD L33789. After that come the documentation a claim needs and the errors behind most denials.

Found our content helpful?

Key Takeaways

HCPCS code K0854 covers a group 3 extra heavy duty power wheelchair with a sling or solid seat and back. The rating starts at 601 pounds.

Chairs rated 451 to 600 pounds take K0852 or K0853, and a captain’s chair rated 601 pounds or more takes K0855.

Medicare requires an affirmative prior authorization decision before delivery, and its unique tracking number belongs on the claim.

Group 3 coverage adds two file requirements: a specialty evaluation by a therapist, and an appraisal by the supplier’s RESNA-certified ATP.

Complex rehabilitative power wheelchairs from K0848 to K0864 are excluded from competitive bidding, so national fee schedule pricing applies.

What HCPCS code K0854 covers, and what it does not

HCPCS code K0854 describes a power wheelchair, group 3 extra heavy duty, sling/solid seat/back, patient weight capacity 601 pounds or more. The code belongs to HCPCS Level II, maintained by the Centers for Medicare and Medicaid Services (CMS).

Two specifications decide the code, and the delivered chair has to match both. The first is the rated weight capacity, which starts at 601 pounds and has no upper limit. The second is the seating, a sling or solid seat and back rather than a captain’s chair.

Change either specification and the code changes with it. A captain’s chair at the same weight rating is K0855, and a sling seat rated for 550 pounds is K0852.

What group 3 extra heavy duty means: group 3 is a clinical classification before it is a weight one. The power mobility devices LCD covers a group 3 chair only for certain causes. The limitation has to stem from a neurological condition, a myopathy, or a congenital skeletal deformity.

Extra heavy duty is the weight tier applied inside group 3, and that tier begins at 601 pounds. The table below sets out the code’s attributes in one place.

How Medicare pays K0854

Medicare reimburses K0854 under the DMEPOS fee schedule, which CMS updates each January. Rates vary by DME MAC jurisdiction, so pull the allowable for the beneficiary’s state and for the date of service rather than the billing date.

Check the figure against the CMS DMEPOS fee schedule before you submit. Third-party reference sites often miss mid-year updates.

Power wheelchairs sit in Medicare’s capped rental category, where rental runs for up to 13 months. Ownership then transfers to the beneficiary at no extra cost.

K0854 is a complex rehabilitative power wheelchair, so the beneficiary may also elect a lump-sum purchase when the supplier furnishes the chair. Purchase is a valid payment route for this code, not a billing error. The election is recorded with a modifier, and it has to be made after the supplier explains both options.

Competitive bidding does not reach K0854. Complex rehabilitative power wheelchairs from K0848 to K0864 are permanently excluded from the DMEPOS Competitive Bidding Program. That exclusion was set by the Medicare Improvements for Patients and Providers Act of 2008.

National fee schedule pricing therefore applies in every area. No competitive bidding contract is needed to supply the chair, and there is no bid rate to look up.

Confirming the payment basis before delivery keeps the money side clean. Billing a rental month after ownership has transferred produces a denial and a compliance flag at once.

Medicare coverage criteria for K0854

Coverage rests on medical necessity documented against LCD L33789, Power Mobility Devices. All four DME MACs apply that policy. Noridian Healthcare Solutions administers jurisdictions A and D, and CGS Administrators covers jurisdictions B and C.

Read the LCD alongside its policy article, A52498, and the standard documentation requirements article, A55426. Between them they set out what the file has to contain before the claim goes out.

These criteria apply to a group 3 extra heavy duty power wheelchair:

• The beneficiary has a mobility limitation that significantly impairs their ability to perform mobility-related activities of daily living (MRADLs) in the home.
• A cane, a walker, a manual wheelchair, or a lower-group power wheelchair cannot address that limitation adequately.
• The limitation is caused by a neurological condition, a myopathy, or a congenital skeletal deformity, which is the group 3 clinical test.
• The record supports a chair rated at 601 pounds or more. Between 451 and 600 pounds the codes are K0852 and K0853.
• A face-to-face examination by the treating practitioner records the clinical findings behind the order.
• A specialty evaluation is performed by a physical therapist, an occupational therapist, or a physician trained in rehabilitation wheelchair assessment. That person can hold no financial relationship with the supplier.
• The supplier employs a RESNA-certified Assistive Technology Professional (ATP) who is directly involved in selecting the chair.
• A standard written order is signed by the treating practitioner and received before delivery.
• The beneficiary’s home can accommodate the chair, or can be made accessible so the chair is usable.

Sound medical billing compliance on K0854 means satisfying the national policy and any extra criteria the MAC adds. Medical necessity is the treating practitioner’s determination, recorded in the medical record, and no reference article can settle it for a given patient.

Prior authorization comes before delivery

K0854 sits on the CMS Required Prior Authorization List for certain DMEPOS items. The requirement has been nationwide since September 1, 2018, so no jurisdiction lets a supplier skip it.

A claim submitted without an affirmative decision is denied automatically, and those denials rarely survive appeal. The process runs in this order:

• Assemble the file, including the face-to-face notes, the specialty evaluation, the ATP appraisal, and the written order.
• Submit the request to the DME MAC before the chair is delivered.
• Receive an affirmative decision and record the unique tracking number (UTN) it carries.
• Deliver the chair only once that decision is in hand.
• Put the UTN on the claim when you submit it.

Prior authorization rules for Medicare Advantage plans are set by the plan rather than by CMS. Confirm the requirement, the documentation standard, and the rate with the plan before any equipment is ordered.

Documentation requirements for a K0854 claim

Documentation deficiencies drive more K0854 denials than any other cause. DME MAC audits of group 3 power wheelchair codes keep returning the same finding. The file was assembled after the denial rather than before the claim.

In most jurisdictions a single missing element triggers an automatic denial. Treat every row below as a hard requirement.

Retain the file for at least seven years and keep it producible on request. Collecting each item through structured digital forms rather than loose scans surfaces an incomplete file while there is still time to fix it.

Modifiers that decide how K0854 is paid

The modifier on a K0854 line sets both the payment method and the compliance posture of the claim. Each one tells Medicare whether the chair was rented or purchased, whether it is new or used, and whether the LCD requirements were met. Most MACs deny an unmodified line.

KX decides most claims. Without it, the MAC reads the line as a file that was never completed. Never append KX speculatively, because the modifier attests that the documentation already satisfies the LCD.

Rental and purchase modifier errors show up consistently in DME audits. Billing RR after ownership transferred at month 13, or NU for a used chair, creates exposure under the False Claims Act.

Which ICD-10 codes support a K0854 claim

Every K0854 claim needs one or more ICD-10 diagnosis codes that establish medical necessity for a group 3 chair. The diagnosis has to name the condition causing the mobility limitation, and weight alone does not qualify a beneficiary.

MACs maintain approved diagnosis lists inside their LCDs. The codes below appear often, without being accepted in every jurisdiction.

Confirm each code against your MAC’s LCD before billing, and cross-check the descriptor in the AAPC HCPCS code reference. A diagnosis missing from the approved list produces a medical necessity denial even where the clinical record is strong.

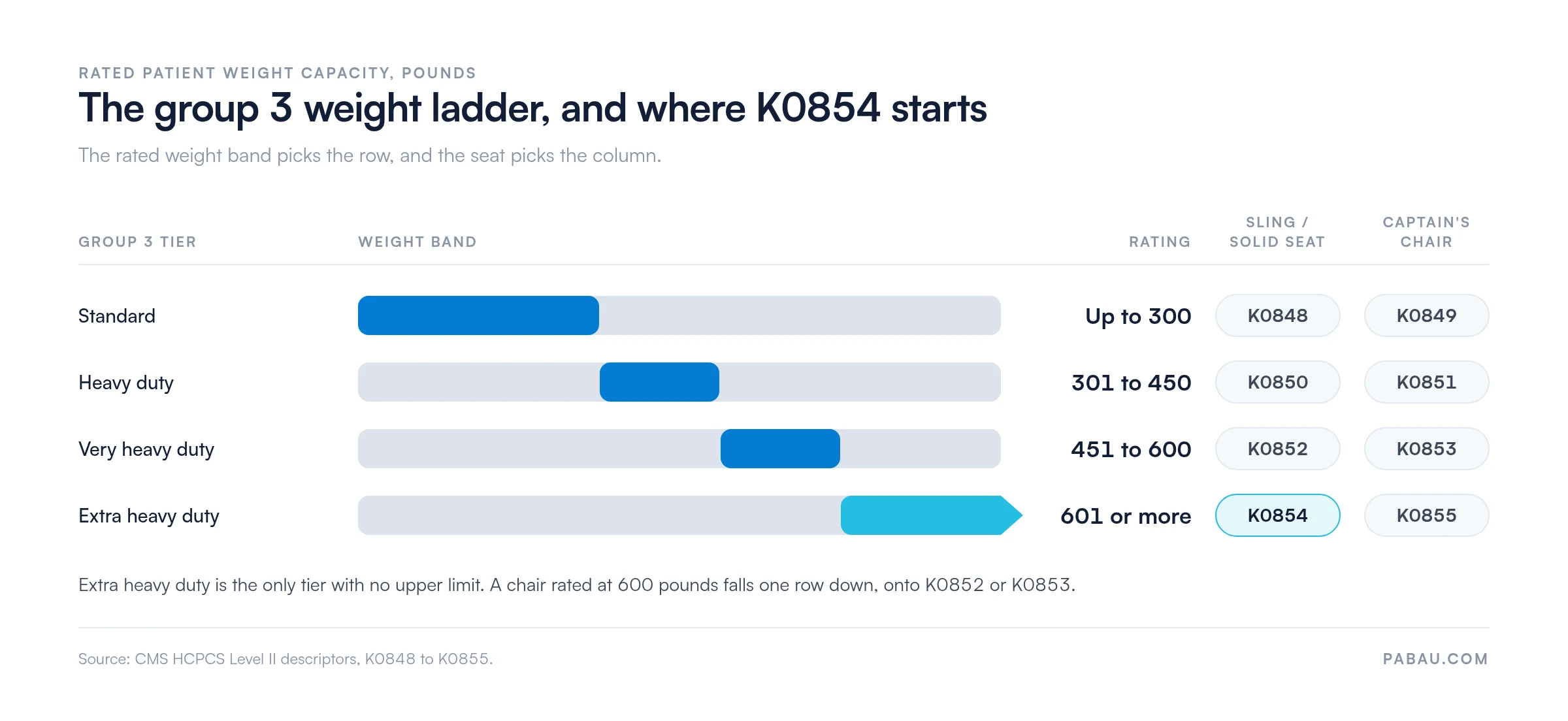

Where K0854 stops and the next code starts

K0854 sits inside the group 3 power wheelchair series, which runs from K0848 through K0864. Two axes separate the codes in that series. The first is the rated patient weight band, and the second is the seat configuration.

Reading the ladder in order makes the decision mechanical. Find the weight band the delivered chair is rated for, then pick the row that matches its seat.

The lower boundary is where K0854 is most often misapplied. A chair rated for 500 pounds is K0852, or K0853 with a captain’s chair. Only a rating of 601 pounds or more reaches the extra heavy duty tier.

K0856 is a frequent mix-up, because the number sits beside K0855 in the series. It is not an extra heavy duty code. K0856 is a group 3 standard chair with a single power option, rated up to and including 300 pounds.

Codes K0856 through K0864 repeat the same weight ladder for chairs with single or multiple power options, such as a powered tilt or recline. Our HCPCS code library carries the rest of the K-series if you need a neighboring descriptor.

Power seating systems and other accessories are billed separately under their own E-series codes. They are never bundled into K0854.

Common billing errors that get K0854 denied

Most K0854 denials trace back to a short list of preventable errors. Suppliers who bill group 3 chairs regularly meet the same audit triggers. Learning them in advance costs far less than discovering them through a Recovery Audit Contractor review.

• Billing K0854 below the band: a chair rated between 451 and 600 pounds is K0852, or K0853 with a captain’s chair.
• Mismatched seat configuration: a captain’s chair rated at 601 pounds or more is K0855. The weight band alone does not settle the code.
• Coding from the chart weight: the code follows the chair’s rated capacity from the manufacturer, and the clinical record has to support that rating.
• Confusing K0856 with the extra heavy duty tier: K0856 is a group 3 standard chair with a single power option, rated up to 300 pounds.
• Missing or late prior authorization: delivering before the affirmative decision arrives leaves no cure after the fact in most jurisdictions.
• Missing KX modifier: the MAC reads an absent KX as an incomplete file, and a complete file does not change that.
• No specialty evaluation or ATP record: group 3 coverage requires both, and neither can be recreated after delivery.
• Incorrect rental or purchase modifier: applying NU to a rental claim, or RR after ownership transferred at month 13.
• Insufficient ICD-10 specificity: a broad unspecified code where the record supports a precise diagnosis attracts extra scrutiny.
• Delivery without signed confirmation: shipping before proof of delivery is captured leaves the file short of a document you cannot recreate.

A five-point check before you submit

• Rated weight capacity of 601 pounds or more confirmed against the manufacturer’s specification.
• Seat configuration on the delivery note matches the code on the claim.
• Face-to-face exam dated before the written order, and the written order dated before the authorization request.
• Specialty evaluation and ATP appraisal both on file, each dated before delivery.
• Affirmative prior authorization decision in hand, with its unique tracking number on the claim.

Run the five in order and the file tells you whether the claim is ready. Suppliers who treat each point as a gate see markedly lower denial rates on power wheelchair claims.

Code history and annual updates

HCPCS code K0854 took effect on November 15, 2006, when CMS replaced the older power wheelchair codes with the current K-series. The descriptor has been stable since, with no change to the weight threshold or the seat configuration.

Annual updates to K0854 have concerned payment rather than wording. CMS publishes HCPCS Level II update files each autumn for the following calendar year. Review the CGS coding verification guidance and the equivalent Noridian guidance each year.

Those bulletins are where changes to coverage policy, modifier requirements, and prior authorization status are announced first. Checking them before the January claim cycle keeps the billing system aligned with current guidance.

How Pabau keeps a K0854 file audit-ready

Most suppliers assemble a K0854 file across several systems. The mobility evaluation sits in the clinical record, the written order arrives as a scan, and the ATP’s involvement is noted in an email. The delivery receipt is a signed sheet in a folder.

Nobody sees the whole file at once, which is how a claim goes out with one piece missing. Practice management software like Pabau keeps those pieces on a single patient record, each with a timestamp.

The order of those dates is what an auditor checks first. Pabau’s claims management software then submits electronically through Claim.MD in the US, and tracks what each payer sends back. It helps you keep codes, modifiers, and supporting documents together on every claim.

Pabau does not pick codes or modifiers for you, and it runs no crosswalk or clinical decision support. That judgment stays with your coder. What it gives you is one place to confirm the file is complete before the claim leaves.

Keep the whole K0854 file in one place

Pabau stores the specialty evaluation, the written order, the authorization decision and the proof of delivery on one patient record. It then submits the claim and tracks what the payer sends back.

Book a demo

Conclusion

K0854 answers one narrow question. Was the delivered chair a group 3 extra heavy duty model with a sling or solid seat, rated for 601 pounds or more? A chair rated below that belongs on another code in the series.

The rest is sequence. Examine, evaluate, order, authorize, deliver, then bill with the unique tracking number and the KX modifier. Suppliers who hold that order see far fewer denials than those who assemble the file after the claim comes back.

Keeping the file in one system is what makes the sequence checkable before delivery rather than after. Book a demo to see how Pabau tracks DME documentation from the specialty evaluation through to proof of delivery.
