Heart diagram: Free labeled and blank template

Key takeaways

A heart diagram labels the four chambers, four valves, great vessels and conduction system on one page. Anatomy questions get answered in seconds, not paragraphs.

The labeled page works for consultations and staff training. The blank page, with numbered callouts, works for self-testing and quizzes.

Pictures closely tied to text raise both attention and recall, and patients with lower literacy skills gain the most.

Note what you showed and what the patient understood, otherwise the education you delivered leaves no trace in the record.

Download your free heart diagram

Heart disease is the leading cause of death in the United States, and it accounted for 20.1% of all deaths in 2021. So a fair number of your consultations touch the heart. Most of them stall at the same point: the patient cannot picture the anatomy you are describing.

A labeled diagram solves that faster than any explanation. Point at the valve, name it, and the conversation moves on to what you plan to do about it.

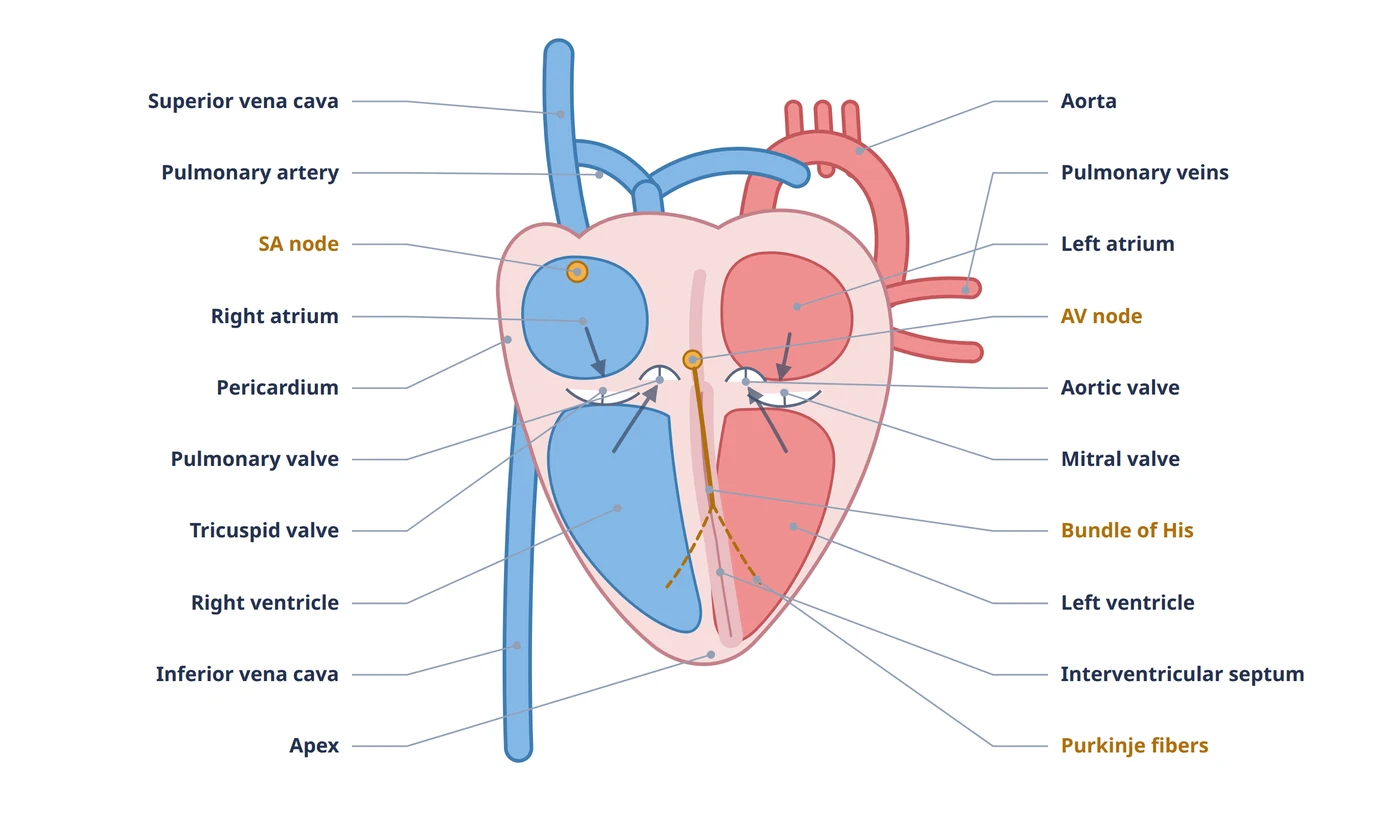

What the heart diagram shows

The template is a schematic anterior view, drawn the way a patient faces you: their right side sits on your left. Oxygen-poor blood is blue, oxygen-rich blood is red, and the conduction system is amber.

Page one names 20 structures. Page two repeats the same drawing with numbered callouts and blank lines, so it doubles as a quiz sheet.

Parts of the heart, chamber by chamber

Twenty structures carry labels on page one of the template. These are the ones worth naming out loud in a consultation.

• Right atrium: receives oxygen-poor blood from the body through the superior and inferior vena cava.
• Right ventricle: thinner walled pump that sends that blood to the lungs.
• Left atrium: receives oxygen-rich blood back from the lungs through the pulmonary veins.
• Left ventricle: the thick walled pump that drives blood into the aorta and around the body.
• Tricuspid and mitral valves: sit between each atrium and its ventricle and stop backflow during contraction.
• Pulmonary and aortic valves: guard the two ventricular outflows and stop blood draining back into the ventricles.
• Great vessels: the venae cavae in, the pulmonary artery out to the lungs, the pulmonary veins back, and the aorta out to the body.
• Interventricular septum: the muscular wall that keeps the two circulations separate.
• Pericardium: the sac around the heart that holds it in place and reduces friction as it beats.
• Apex: the tip formed by the left ventricle, and the landmark you palpate or auscultate.

The National Heart, Lung, and Blood Institute describes the same four chambers and three tissue layers. It’s a useful second reference for a patient who wants to read more at home.

How blood moves through the heart

Blood flow is the part patients grasp quickest, because it is a sequence rather than a list.

1. Oxygen-poor blood returns from the body through the superior and inferior vena cava into the right atrium.
2. It crosses the tricuspid valve into the right ventricle.
3. The right ventricle contracts and pushes it through the pulmonary valve into the pulmonary artery.
4. The lungs load oxygen and offload carbon dioxide.
5. Oxygen-rich blood returns through the pulmonary veins into the left atrium.
6. It crosses the mitral valve into the left ventricle.
7. The left ventricle contracts and drives it through the aortic valve into the aorta, and out to the body.

That circuit repeats roughly 60 to 100 times a minute at rest. Tracing it with a finger on the diagram turns a physiology lecture into a 30 second explanation.

The conduction system that sets the rhythm

The amber pathway on the diagram is the electrical system. You need it when the conversation turns to palpitations, rate control or a pacemaker.

• SA node: the pacemaker in the right atrium that starts each beat.
• AV node: sits low on the interatrial septum and holds the signal briefly, so the atria finish emptying before the ventricles fire.
• Bundle of His: carries the signal down the interventricular septum and splits into the left and right bundle branches.
• Purkinje fibers: spread the signal through the ventricular muscle so both ventricles contract together.

As StatPearls sets out, the AV node is the only normal electrical connection between the atria and the ventricles. Showing that single crossing point on a diagram explains a block better than describing it does.

Using the heart diagram in patient consultations

A review in Patient Education and Counseling found that pictures closely tied to text raise both attention and recall. The largest gains came among patients with lower literacy skills.

The practical uses fall into a short list.

• Explaining which valve or chamber a diagnosis involves, before the words leak, stenosis or regurgitation get used.
• Walking a patient through what a planned procedure will reach and in what order.
• Orienting new clinical staff during induction, so everyone points at the same structures with the same names.
• Giving students a blank sheet to label from memory, then checking it against page one.
• Setting up a conversation about risk factors, where the coronary supply and the muscle it feeds are the point.

Sending the diagram ahead of the visit also changes the opening of the consultation. Attach it to a universal health form through digital patient forms, and the patient arrives having already seen the anatomy you are about to discuss.

Who the diagram is for

The template was drawn for clinical teams rather than exam illustrators, so it stays readable at arm’s length across a desk.

• Primary care and private GPs explaining a new diagnosis or a referral in the ten minutes available.
• Cardiac rehabilitation and physical therapy teams setting out why a precaution exists before asking for effort.
• Nursing staff running patient education rounds and induction sessions.
• Educators and students who need a labeled sheet and a blank one that match.
• Wellness and preventive clinics turning a risk factor conversation into something the patient can see.

One drawing serving all of those roles is the point. The poster on the wall, the handout in the folder and the quiz sheet in the drawer all use the same colors and structures. Nobody has to translate between versions.

Using the blank version for teaching and quizzes

Page two is the same drawing with 20 numbered callouts and blank answer lines. Labeling it from memory sticks better than rereading a finished sheet, which is why both pages are in the file.

The blank page also works in front of a patient. Ask them to point out where their own valve or stent sits, and any misunderstanding shows up straight away.

• Induction weeks, where new staff label the sheet before their first cardiac clinic.
• Revision, either as a timed exercise or a pair activity.
• Follow-up appointments, as a quick check on what the patient retained from last time.

How Pabau helps you record what you explained

Patient education that leaves no trace in the record is a problem at audit. It is also a problem for the next clinician who sees the patient.

Practice management software like Pabau keeps the handout and the note in one place. Pabau Scribe, our AI medical scribe, drafts the consultation note from the conversation. The structures you named end up in the record without a second typing pass.

From there the note behaves like any other clinical entry. It is searchable, it carries an audit trail, and it holds up better than a line reading “anatomy discussed”.

If your team writes these up by hand, a structured progress notes template keeps the education you delivered in a consistent place in the record.

Send the handout before the appointment, not after

Pabau’s digital forms and client portal deliver patient education material ahead of the visit. The answers come back as structured fields in the client record.

Book a demo

Conclusion

Cardiac anatomy is hard to hold in your head from words alone. That is why a single labeled page still earns its place next to imaging and 3D models. Print the labeled version for the consultation room, and keep the blank version for teaching. Pair it with a written plan of care so the explanation carries through to what happens next.

Practices that get the most from a handout like this put it in front of the patient early. Then they write down what was understood, not just what was said.

Book a demo with Pabau to see how digital forms, the client portal and AI-assisted notes keep patient education and documentation in the same record.

Continue your research

Need the numbers behind the pump, not just the parts? The cardiac output equation shows how rate and stroke volume combine, which is the next question once a patient understands the chambers.

Explaining why a weaker ventricle matters? Stroke volume equation covers what each beat actually ejects, and what changes it.

Moving from anatomy to a care plan? The hypertension nursing care plan gives you diagnoses, goals and interventions for the risk factor that comes up most in these conversations.
